ATC 710 M single-engine FAA level 3/AATD Flight Training Device

Comes with new interactive technology where multiple ATC simulators are linked together.  Each simulator pilot can see and talk to each other, the instructor center /air traffic control radar can control, see, and talk to all three simulator pilots for interactive VFR, IFR, and Air traffic Control training.

FEATURE HIGHLIGHTS

Digital, high fidelity aerodynamics, engine and systems models based on real aircraft.

LCD driven instruments eliminate electromechanical malfunctions, costly repairs and calibration.

Modern Radio stack includes 2 NAV/COMs, ADF, Transponder, DME, 3LMB and Audio Panel. Functionally similar to Silver Crown.

Real-World Navigation database includes entire U.S., or (optionally) entire world. Visual system has all runways matched to Nav data with proper runway markings (precision and non-precision) and appropriate landing light systems.

It features accurate high resolution terrain, waterways, environmental effects, and time of day modeling.

State of the Art Instructor Station includes:

  • Multiple engine faults
  • Multiple instrumentation faults
  • Multiple systems faults, Multiple wind, turbulence, and cloud layers
  • Vertical and horizontal Glide Slope tracking
  • Flight recorder with up to 30 FPS accuracy
  • Automated tests for FAA certification

Sound Effects:

  • Engine sound (including startup)
  • Marker beacon audio
  • Flap motor sound (absent if failed)
  • Slip stream
  • Tire screech
  • Runway rumble
  • Morse code idents

Optional Circuit breakers

Optional GPS 430/530 Handheld GPS Plugs into simulator

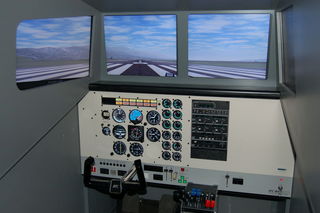

ATC 810 M Twin-Engine & 820M Dual Control FAA level 3/AATD Flight Training Device FAA APPROVED LEVEL 3 FLIGHT TRAINING DEVICE Level 3/AATD.

FTD certification. Students can log 2.5 hours towards the private pilot rating, 20 hours towards the commercial rating, 50 hours towards the instrument rating and all recurrency checks. Comes with new interactive technology where multiple ATC simulators are linked together enabling interactive VFR, IFR, and Air Traffic Control training

FEATURE HIGHLIGHTS

Digital, high fidelity aerodynamics; engine and systems models based on Piper Mojave flight data. Other available models include Cessna 172, Cessna 310, Piper Aerostar, Piper Comanche, Piper Cherokee, Cessna Citation, Piper Seneca II, and many more.

Facility to create your own aircraft and flight dynamics models.

Digital, high fidelity aerodynamics engine and systems models based on real aircraft.

LCD driven instruments eliminate electromechanical malfunctions, costly repairs and calibration.

Modern Radio stack includes 2 NAV/COMs, ADF, Transponder, DME, 3LMB and Audio Panel. Functionally similar to Silver Crown.

Real-World Navigation database includes entire U.S., or (optionally) entire world. Visual system has all runways matched to Nav data with proper runway markings (precision and non-precision) and appropriate landing light systems. (Nav Database easy to update keeping your system totally current).

It features accurate high resolution terrain, waterways, environmental effects, and time of day modeling.

State-of-the-Art Instructor Station includes:

  • Multiple engine faults
  • Multiple instrumentation faults
  • Multiple systems faults Multiple wind, turbulence, and cloud layers
  • Vertical and horizontal Glide Slope tracking
  • Flight recorder with up to 30 FPS accuracy
  • Automated tests for FAA certification

Sound Effects:

  • Engine sound (including startup)
  • Marker beacon audio
  • Flap motor sound (absent if failed)
  • Slip stream
  • Tire screech
  • Runway rumble
  • Morse code idents

Optional Circuit breakers

Optional GPS 430/530 Handheld GPS Plugs into simulator




ATC 920 M 1900 Turbo Prop FAA level 3/AATD
Flight Training Device

Comes with new interactive technology where multiple ATC simulators are linked together.  Each simulator pilot can see and talk to each other. The instructor center /air traffic control radar can control, see, and talk to all three simulator pilots for interactive VFR, IFR, and Air traffic Control training.


FEATURE HIGHLIGHTS

Digital, high fidelity aerodynamics; engine and systems models based on  Beech 1900 flight data. Facility to create your own aircraft and flight dynamics models.

LCD driven instruments eliminate electromechanical malfunctions, costly repairs and calibration.

Modern Radio stack includes 2 NAV/COMs, ADF, Transponder, DME, 3LMB and Audio Panel. Functionally similar to Silver Crown.

Real-World Navigation database includes entire U.S., or (optionally) entire world. Visual system has all runways matched to Nav data with proper runway markings (precision and non-precision) and appropriate landing light systems.

It features accurate high resolution terrain, waterways, environmental effects, and time of day modeling.

State of the Art Instructor Station includes:

  • Multiple engine faults
  • Multiple instrumentation faults
  • Multiple systems faults Multiple wind, turbulence, and cloud layers
  • Vertical and horizontal Glide Slope tracking
  • Flight recorder with up to 30 FPS accuracy
  • Automated tests for FAA certification

Sound Effects:

  • Engine sound (including startup)
  • Marker beacon audio
  • Flap motor sound (absent if failed)
  • Slip stream
  • Tire screech
  • Runway rumble
  • Morse code idents

Optional Circuit breakers

Optional GPS 430/530 Handheld GPS Plugs into simulator

Optional Dual Controls




ATC 212H Helicopter FAA level 3/AATD
Flight Training Device

Comes with new interactive technology where multiple ATC simulators are linked together. Each simulator pilot can see and talk to each other. The instructor center /air traffic control radar can control, see, and talk to all three simulator pilots for interactive VFR, IFR, and Air traffic Control training.

FEATURE HIGHLIGHTS

Digital, high fidelity aerodynamics; engine and systems models and blade element modeling techniques. Software provides an accurate flight model including transitional lift, ground effect, torque, auto- rotation .

LCD driven instruments eliminate electromechanical malfunctions, costly repairs and calibration.

Modern Radio stack includes 2 NAV/COMs, ADF, Transponder, DME, 3LMB and Audio Panel. Functionally similar to Silver Crown.

Real-World Navigation database includes entire U.S., or (optionally) entire world. Visual system has all runways matched to Nav data with proper runway markings (precision and non-precision) and appropriate landing light systems.

It features accurate high resolution terrain, waterways, environmental effects, and time of day modeling.

State of the Art Instructor Station includes:

  • Multiple engine faults
  • Multiple instrumentation faults
  • Multiple systems faults Multiple wind, turbulence, and cloud layers
  • Vertical and horizontal Glide Slope tracking
  • Flight recorder with up to 30 FPS accuracy
  • Automated tests for FAA certification

Sound Effects:

  • Engine sound (including startup)
  • Marker beacon audio
  • Flap motor sound (absent if failed)
  • Slip stream
  • Tire screech
  • Runway rumble
  • Morse code idents

Optional Circuit breakers

Optional GPS 430/530 Handheld GPS Plugs into simulator

Optional Dual Controls

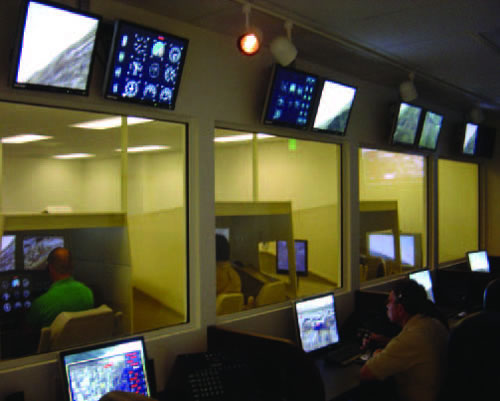

Virtual Firefighting

ATC flight simulator provides one-of-a-kind training opportunity for aerial firefighters.  This simulator simulates aerial fire attack and suppression. The scenarios are entirely interactive, with the trainee pilot or air tactical group supervisor flying in their own aircraft and responding to the incident as it unfolds.

FEATURE HIGHLIGHTS

Digital, high fidelity aerodynamics; 9 Types of aircraft available P-3 Orion C-130 Air tanker S2-T Air tanker King Air Aero Commander, S-64 Skycrane, Bell 212 Air tanker, Bell 206B-3 Cobra.

Ground resources
Fire engines, Water tenders/tankers, Dozers, Individual Firefighters. Facility to create your own aircraft and flight dynamics models.

Terrain/fuel model types
Desert fuel type, rolling hills, urban interface Forest fuel type ,mountainous terrain, scattered groups of structures, High Alpine elevations 10,000 ft.MSL scattered vegetation

Environmental limitations
Can change the wind speed and direction and can influence smoke column. Change cloud cover, precipitation, visibility or time of day.

LCD driven instruments eliminate electromechanical malfunctions, costly repairs and calibration.

Modern Radio stack includes 2 NAV/COMs, ADF, Transponder, DME, 3LMB and Audio Panel. Functionally similar to Silver Crown.

Real-World Navigation database includes entire U.S., or (optionally) entire world. Visual system has all runways matched to Nav data with proper runway markings (precision and non-precision) and appropriate landing light systems.

It features accurate high resolution terrain, waterways, environmental effects, and time of day modeling.

State of the Art Instructor Station includes:

  • Multiple engine faults
  • Multiple instrumentation faults
  • Multiple systems faults Multiple wind, turbulence, and cloud layers
  • Vertical and horizontal Glide Slope tracking
  • Flight recorder with up to 30 FPS accuracy
  • Automated tests for FAA certification

Sound Effects:

  • Engine sound (including startup)
  • Marker beacon audio
  • Flap motor sound (absent if failed)
  • Slip stream
  • Tire screech
  • Runway rumble
  • Morse code idents

Optional Circuit breakers

Optional GPS 430/530 Handheld GPS Plugs into simulator

Optional Dual Controls




These three screenshots show what trainees actually see through the simulator visuals. Left in the aerial-suppression mode pilots can watch the other aircraft operations to practice critical SOP's and communications skills. Simulator participants can perform water drops using several different helicopters including this Sikorsky Skycrane, Bell 212 and a Bell 206. Right one of the advantages of the simulator: it provides trainee pilots an opportunity to experience operations inside fire traffic.

Upgrade Existing Products
Turn your faithful old ATC simulator into a modern feature-packed flight training powerhouse





ATC Flight Simulator has the second largest installed base of all simulators operateing in the United States.

We are currently offering upgrades to existing ATC extremely popular models such as ATC-610, ATC-710, desktop control panels, ATC-810, ATC-820, twin engine and ATC-920, 1900 turbo prop aircraft.

ATC’s older rugged hardware is still good --- it just needs new computer technology. Upgrading a used ATC FTD is a wise investment that saves not only money but also the hassle that can go along with buying new unproven equipment that may not stand up to the rugged flight training environment.

 Upgrades come with new interactive technology where multiple ATC simulators are linked together. Each simulator pilot can see and talk to each other. The instructor center /air traffic control radar can control, see, and talk to all three simulator pilots for interactive VFR, IFR, and Air Traffic Control training

ATC FTD Upgrade Guarantee:

Strict inspection and reconditioning:

  • FTD upgrades include new host computer and software, new instructors’ station, new flight model and new visual system
  • ATC training devices can be equipped with 180° or 220° projected or high definition monitor display systems
  • Reconditioning includes, but is not limited to; repairing or replacing assemblies and components as needed, calibrating circuitry, cleaning and lubricating mechanical linkages and installing various service modifications.
  • New enclosure optional.

Warranty:

  • Manufacturer backed one year warranty.
